CNC turret punching on an Amada turret punch.
Our Amada CNC turret punch is the right choice for parts that are mostly holes, slots and knockouts. It carries a full tool library, so the turret is faster and less expensive than the laser for that work, and it adds small forms, louvers and embosses to the sheet in the same pass. Repeat parts run from the stored program, sheet after sheet, exactly the same.
- Machines
- 1
- Named
- Amada AE 2510NT
- Sheet thickness
- To 11 ga CRS
- Best for
- Holes, knockouts, forms
CNC turret punching in detail

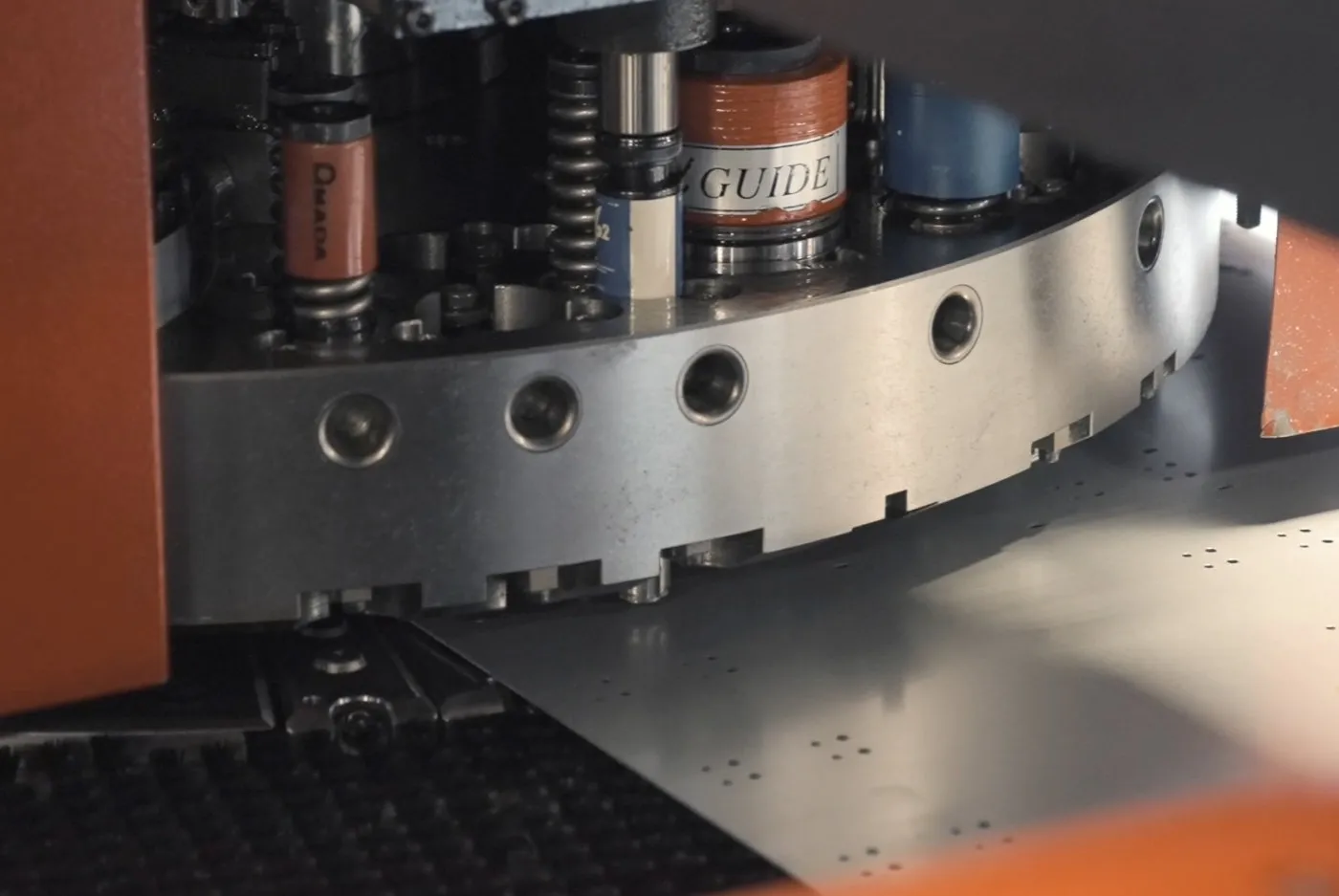

A turret punch does not cut a shape so much as stamp it out a hit at a time, and for parts with hundreds of holes, slots and knockouts that is the right tool. Every hit is the same, sheet after sheet, and the tooling is already in the turret so there is nothing to build or wait for.
The turret also carries forming tools. Louvers, embosses, countersinks and small tabs go in as the sheet is punched, which takes a secondary operation out of the job. We do not run a traditional stamping press; if your part needs deep draws or progressive dies, we will tell you at the quote.
Specifications
Key specifications for cnc turret punching.
| Turret punch | Amada AE 2510NTMulti-station turret with auto-index |
|---|---|
| Materials | CRS, galvanized, galvanneal, stainless, aluminum |
| Thickness | To 11 ga cold rolled |
| In-turret forms | Louvers, embosses, knockouts, countersinks, tabsThe small forms that used to need a die |
| Programming | From your DXF; tool paths written here |
Typical parts
- Panels and covers with hole patterns
- Louvered enclosure sides
- Chassis flats with knockouts
- Slotted shelves and display backs
- Bracket blanks for the brake
Request a quote
Send the print for cnc turret punching. Upload a drawing, a flat pattern or a solid model with quantities, material and finish. The quote is priced against machine time on this floor, and we flag anything that will fight the tooling before you commit to a run.
