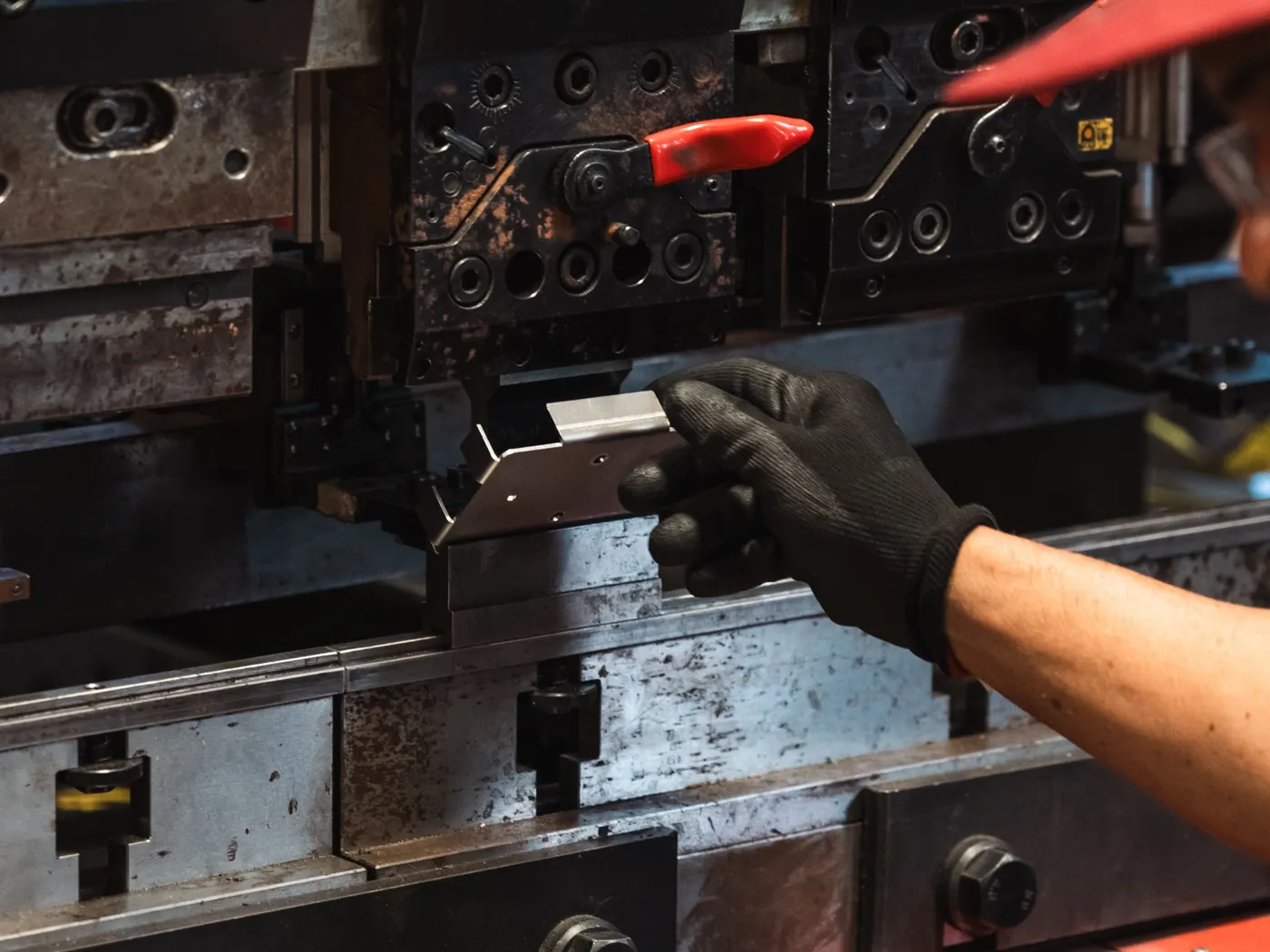

Forming on fourteen press brakes.
Forming is the largest department in our building, with fourteen CNC press brakes. CNC brakes put multiple angles into a part in a single handling and recall a repeat part in minutes, so a second run of your bracket costs what the first one did. Tube is cut and formed on the same floor for frames, legs and structural members.
- Press brakes
- 14
- Tube
- Cut and formed on site
- Cold rolled
- To 11 ga
- Hot rolled
- To ¼ in
Forming & press brake in detail
Fourteen brakes means a part is rarely waiting for a machine. Simple flanges run on the manual-fed brakes; parts with compound bends run on the CNC brakes that hold the whole sequence in memory, so an operator forms every angle in one handling instead of moving the part from station to station.
Repeat programs are recalled rather than re-set, which is why a second run of a bracket costs what the first one did. Tube is cut and formed on the same floor for display frames, legs and structural members.
Specifications
Key specifications for forming & press brake.
| Press brakes | 14 CNC brakesCounts as of the 2026 consolidation |
|---|---|
| Materials | CRS to 11 ga · HRS to ¼ in · stainless · aluminum · galvanized |
| Tube | Round, square and rectangular, cut and formedGalvanized and steel tube; stainless and aluminum tube on request |
| Programming | Bend sequences written from your model or print |
Typical parts
- Brackets and mounting plates
- Enclosures, chassis and covers
- Channels, angles and Z-sections
- Display shelves, bases and uprights
- Tube frames and legs
Request a quote
Send the print for forming & press brake. Upload a drawing, a flat pattern or a solid model with quantities, material and finish. The quote is priced against machine time on this floor, and we flag anything that will fight the tooling before you commit to a run.
