Equipment & materials

Engineers and purchasing managers usually want to see the machine list before anything else, so here it is in full. Every department on the floor is listed below with the machines in it, the materials each will take and the thicknesses it will handle. If a specific machine matters to your part, ask for it by name and we will confirm it is on the floor before you quote your customer. Counts reflect the combined Hunter and Bridge equipment following the 2026 consolidation.

Request a quote All capabilities

Lasers: 3
CNC turret: 1
Press brakes: 14
Weld stations: 34

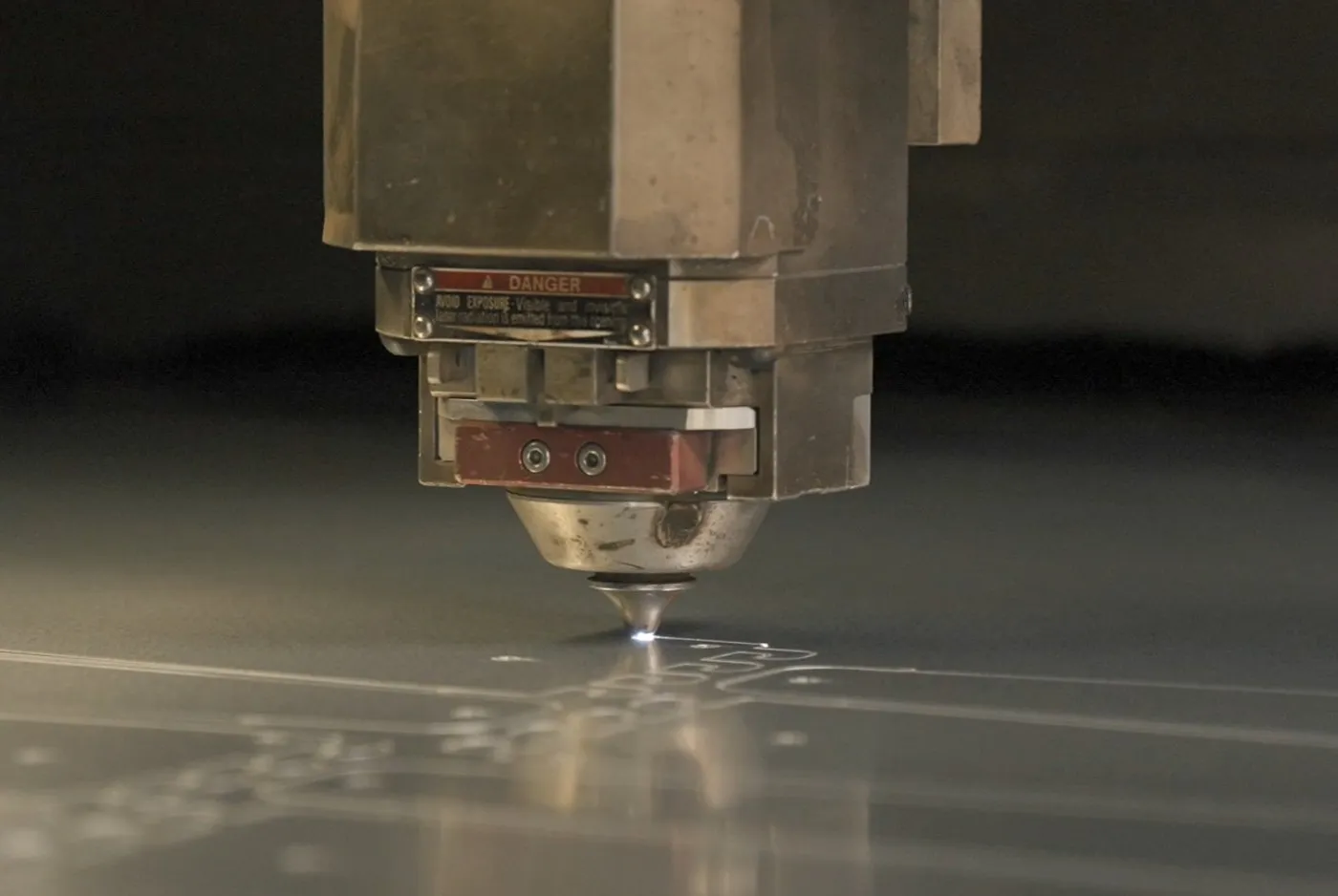

Laser nozzle tracing a part outline in a sheet of steel, sparks at the kerf — **Cutting**Fiber laser, cutting department

Principal machines

The machines engineers most often ask about by model, photographed on the floor.

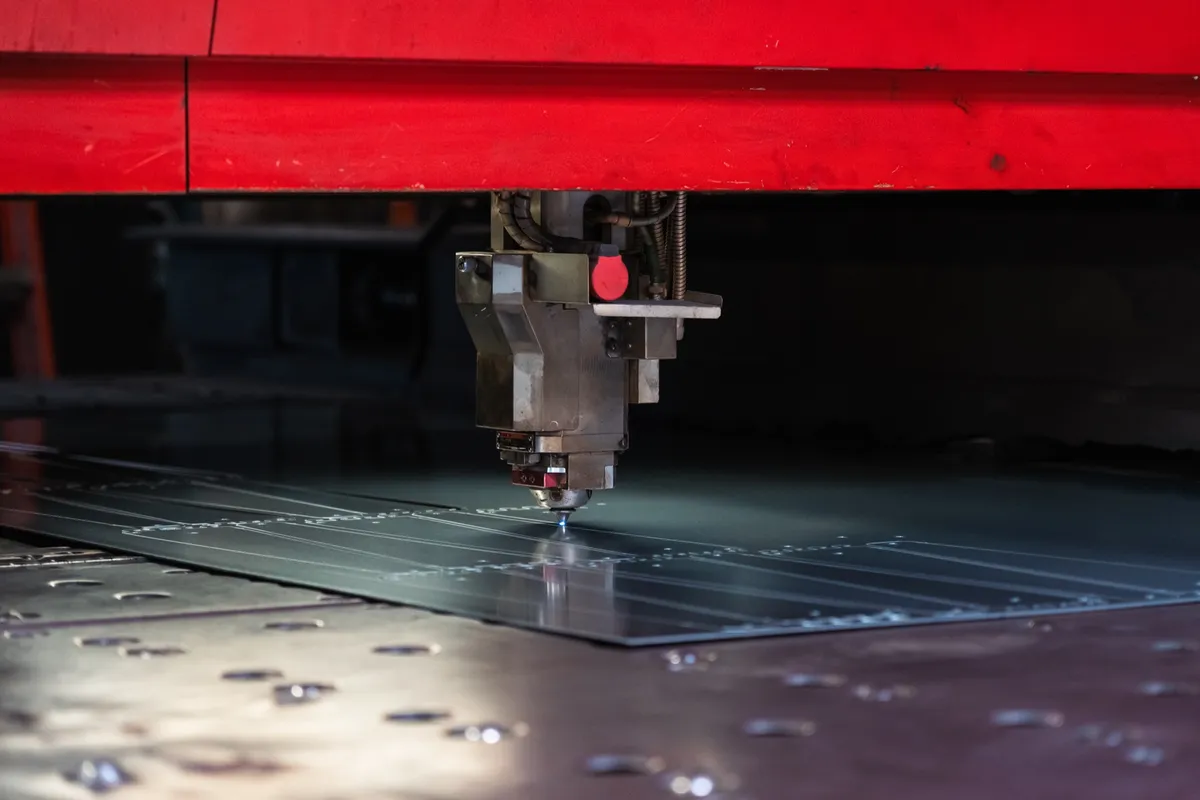

Laser cutting head mid-cut on the bed with a red glow at the nozzle — Fiber laser · cutting head

Amada LASMAC LC 2415 CO2 laser, wide view of the red machine face — Amada LASMAC LC 2415 αIV NT · CO2 laser

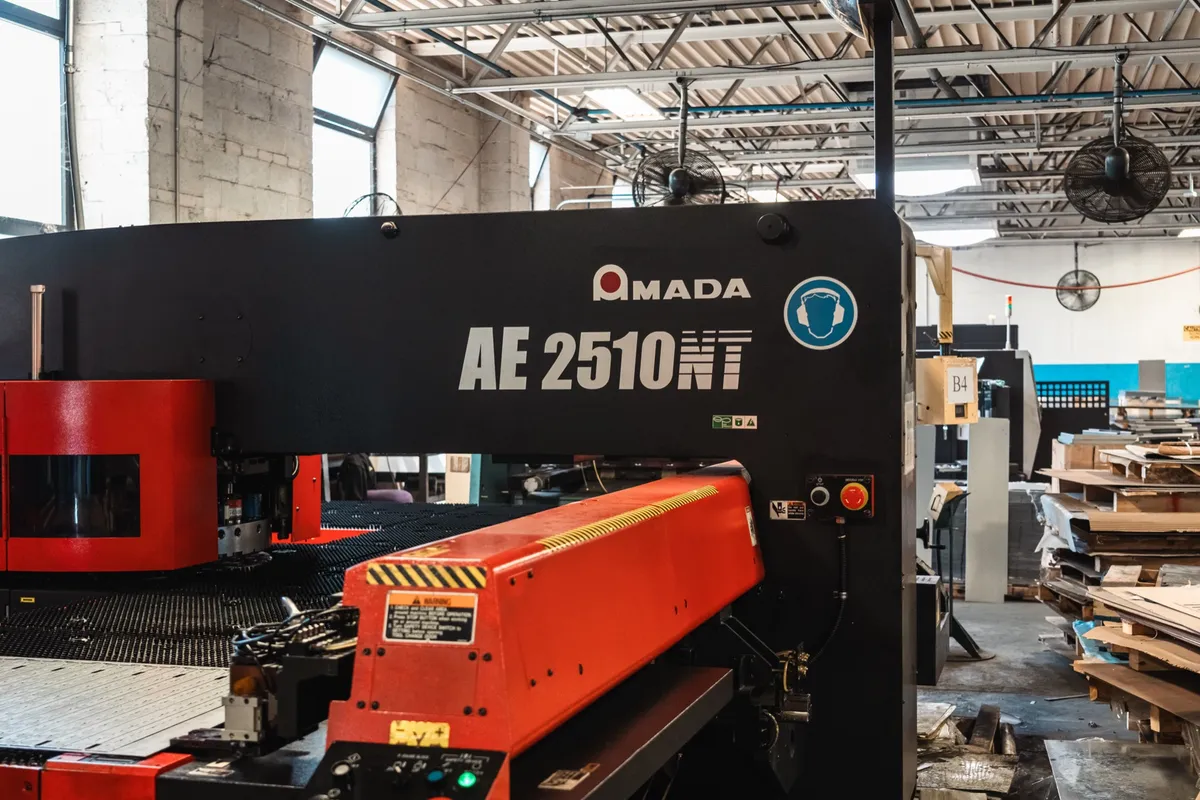

Amada AE 2510NT CNC turret punch with the machine name visible — Amada AE 2510NT · CNC turret punch

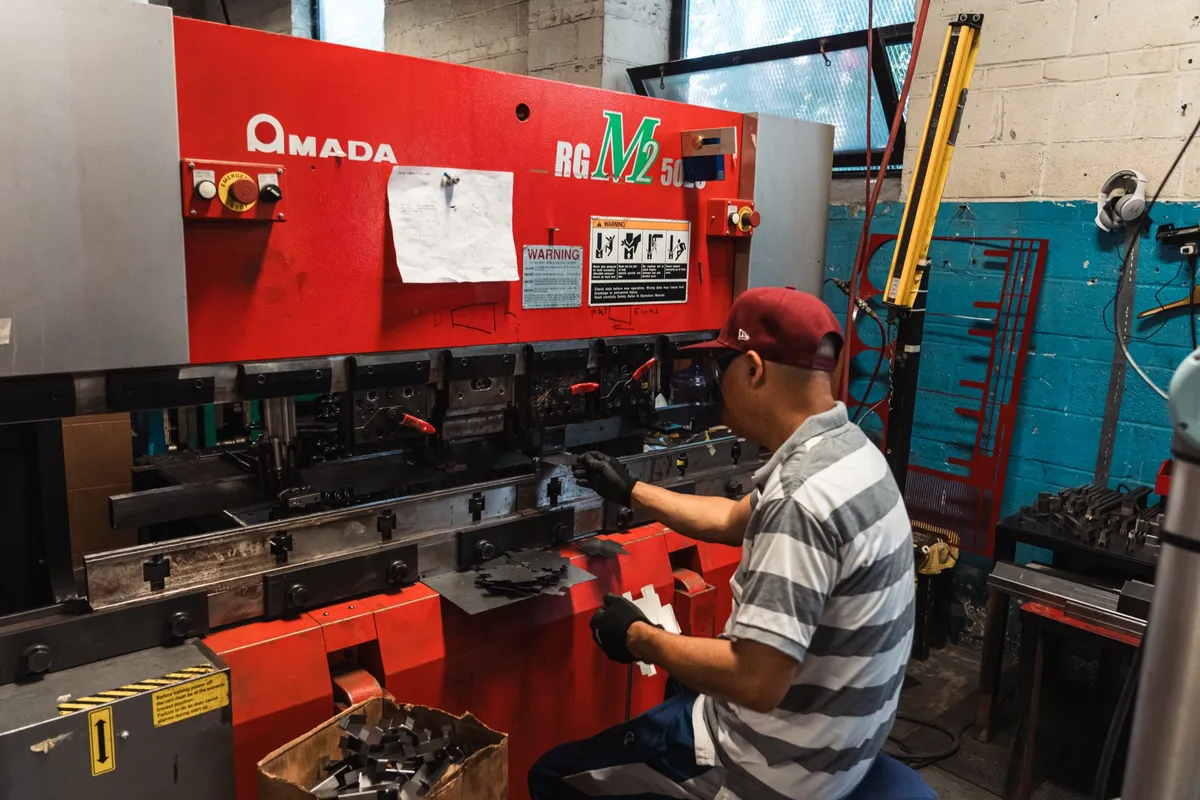

Operator at the controls of a red Amada press brake — CNC press brake · one of 14

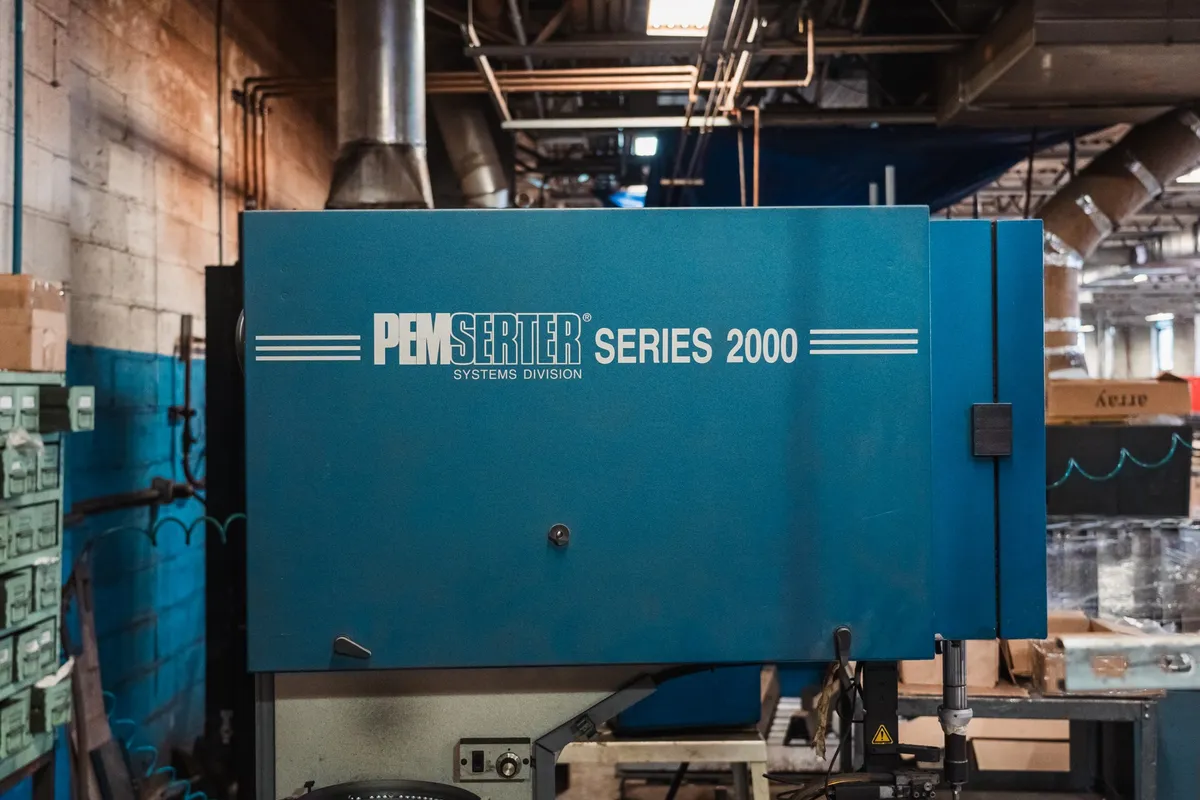

PEMSERTER Series 2000 hardware insertion press — PEMSERTER Series 2000 · hardware insertion

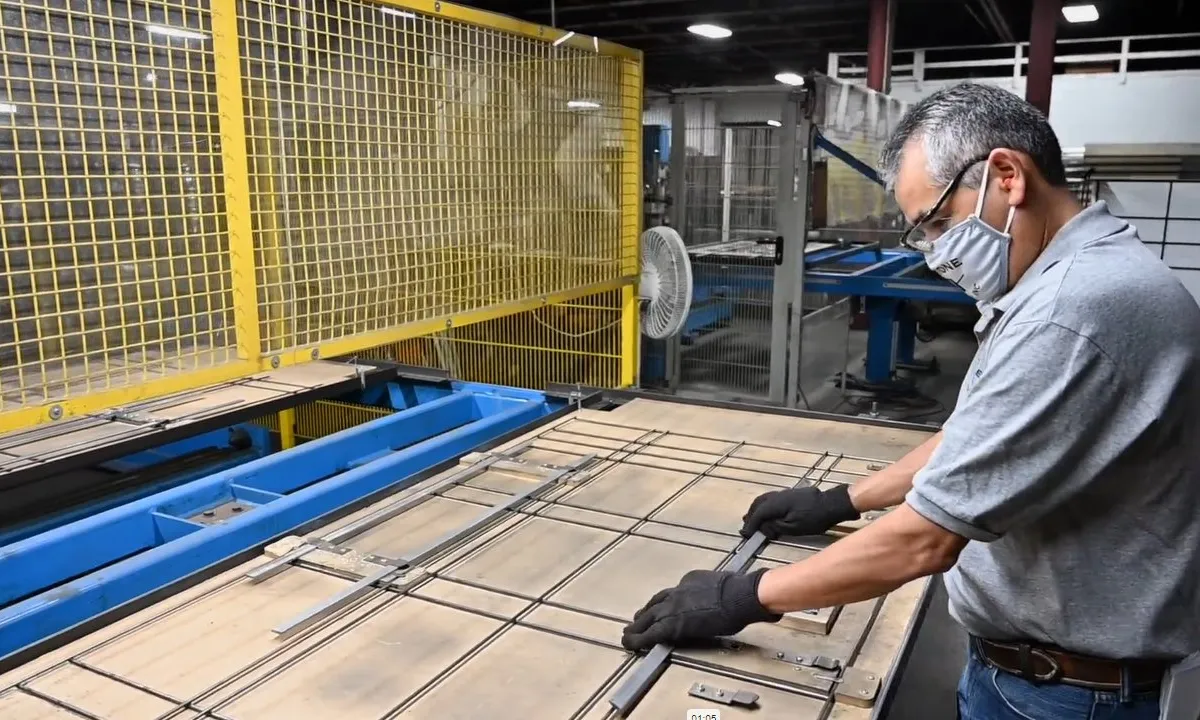

Operator welding a wire grid on a yellow fixture — Grid welder · wire shelves and grids

Operator spraying powder onto hung parts in the coating booth — Powder coating line · in house

Electrodes of a resistance spot welder, close up — Resistance spot welder · one of 18

SheetEquipment list

Plant14 Hewlett Ave, East Patchogue, NY 11772

Floor40,000 sq ft

Rev.2026-09

Equipment by department

Cutting

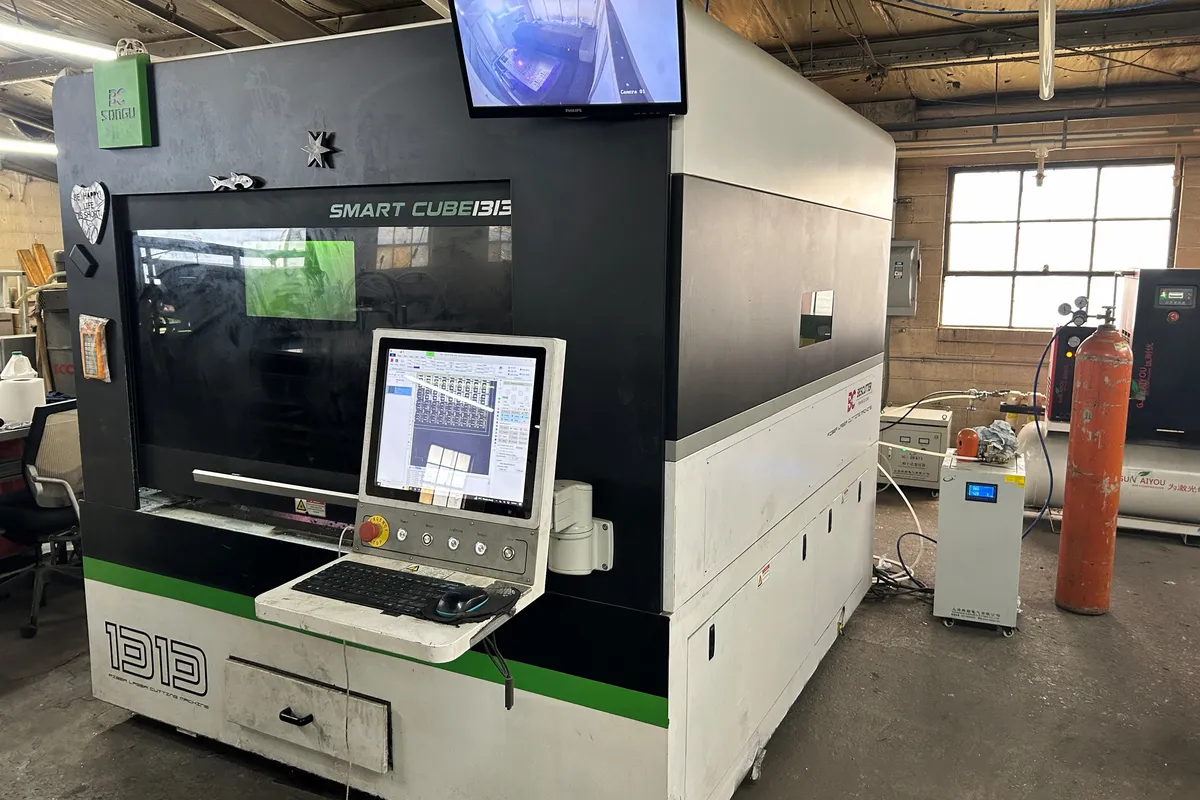

Lasers, fiber and CO2	3 · Sheet to ¼ inBesCutter 5 × 10 fiber · Amada LASMAC LC 2415 αIV NT CO2
Saw, tube and bar	Round, square and rectangular tube; bar stock

Punching

CNC turret punch	1 · Multi-station turret with forming toolsAmada AE 2510NT
Pneumatic presses	5 · Rivets, clips and light forms

Forming

CNC press brakes	14 · CRS to 11 ga · HRS to ¼ in
2D and 3D CNC wire formers	Wire to 5/16 in from coil

Welding

MIG welders	10 · Steel, stainless, aluminum
TIG welders	3 · Stainless and aluminum; cosmetic joints
Multi-process welders	3 · MIG, TIG and stick from one station
Resistance spot welders	18 · Sheet and wire, no filler

Hardware

PEMSERTER Series 2000	1 · Self-clinching nuts, studs, standoffs
Bench drilling and tapping	Secondary operations

Finishing

Powder coating line	In house, inline with fabricationColour to spec
Silkscreen	Direct print on coated parts
Pad print and foil stamp	To 3 × 3 in on metal, wood, plastic

Assembly and shipping

Assembly lines	Dedicated per programMetal, wood, graphics, hardware
Warehouse floor	Shared 40,000 sq ft; finished goods held to release
Shipping	Truckload, LTL and parcel drop-ship with tracking

The floor also includes saws, bench drilling and tapping, deburring and the assembly lines. We build to your print and review it for manufacturability; the design remains yours. If a specific machine matters to your part, ask and we will confirm it is on the floor before you quote your customer.

Materials

Sheet, tube and wire are regularly combined with wood components and printed graphics in a single assembly.

Cold rolled steel	to 11 gaSheet
Hot rolled steel	to ¼ inSheet and plate
Galvanized	sheet & tube
Galvanneal	sheet
Stainless	sheet & tubeTube on request
Aluminum	sheet & tubeTube on request
Chemetal / finished sheet	stockedBeing phased out; ask first
Wire	to 5/16 inSteel and galvanized

Pile of aluminum offcuts from the cutting department — Aluminum offcuts, cutting department

Request a quote

Send the print with the material and quantity. The proposal names the machines the part will run on and the lead time against them, and notes anything that will fight the tooling before you commit to a run.
