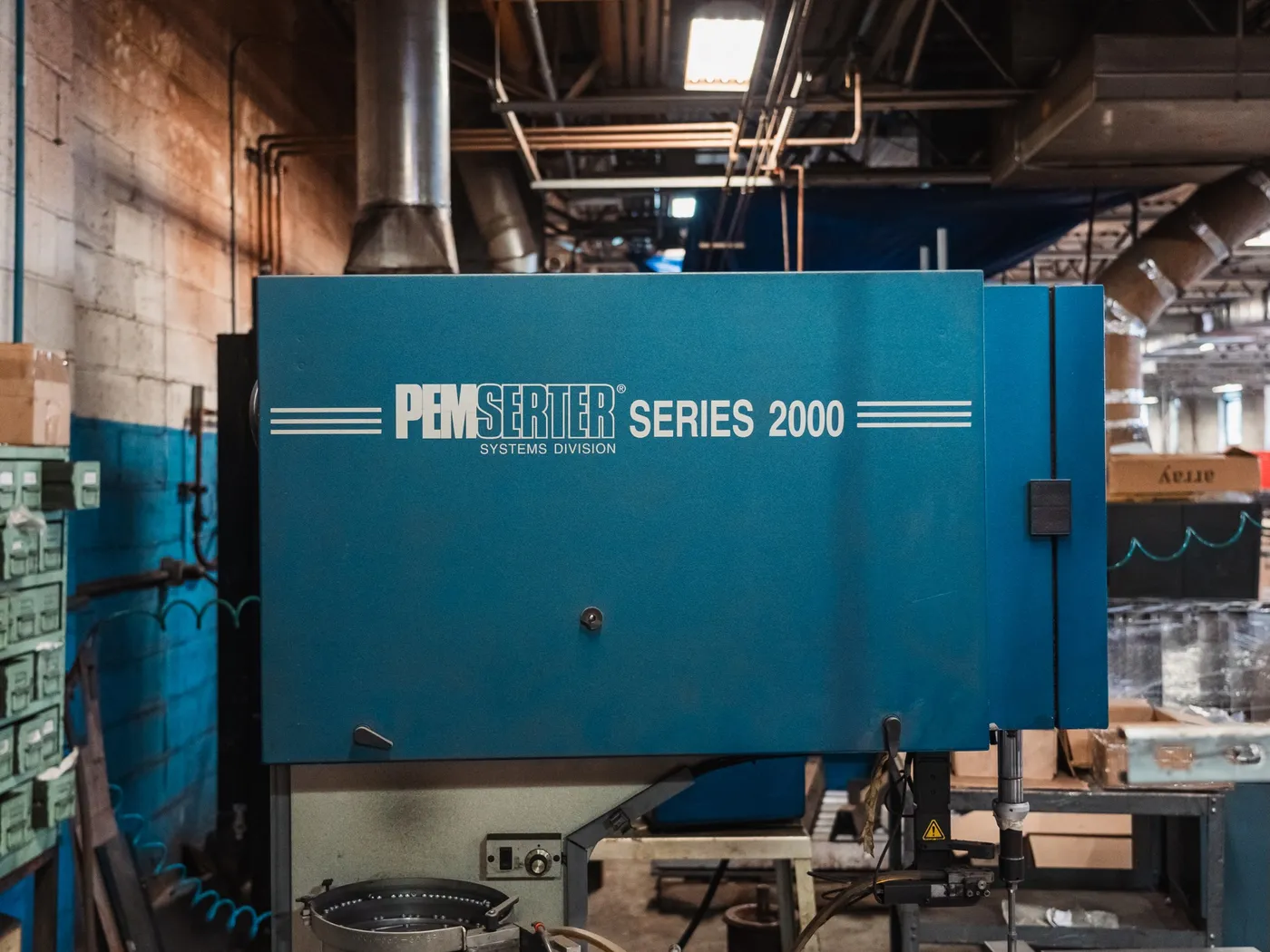

Hardware insertion on a PEMSERTER press.
A PEMSERTER Series 2000 press sets self-clinching nuts, studs and standoffs into sheet before it goes to the powder line, so the hardware in your assembly arrives threaded, square and flush. Tell us the fastener part numbers on the print and we stock them for the run. For a chassis or enclosure that will be assembled a thousand times downstream, this is the step that decides how well it goes together.
- PEMSERTER press
- 1
- Pneumatic presses
- 5
- Hardware
- Nuts · studs · standoffs
- Sequence
- Before coating
Hardware insertion in detail
Hardware is set on the flat, before forming where the press can reach it and always before the powder coat so the thread stays clean. The PEMSERTER press holds the insertion force to the fastener specification, which is the difference between a nut that stays put and one that spins in the panel.
For a chassis or enclosure that is going to be assembled a thousand times downstream, this is the step that determines how well the assembly goes together. Tell us the fastener part numbers on the print and we stock them for the run.
Specifications
Key specifications for hardware insertion.
| Insertion press | PEMSERTER Series 2000Self-clinching hardware in steel, stainless and aluminum sheet |
|---|---|
| Pneumatic presses | 5Rivets, clips and light forms |
| Hardware | PEM nuts, studs, standoffs, captive screws, panel fasteners |

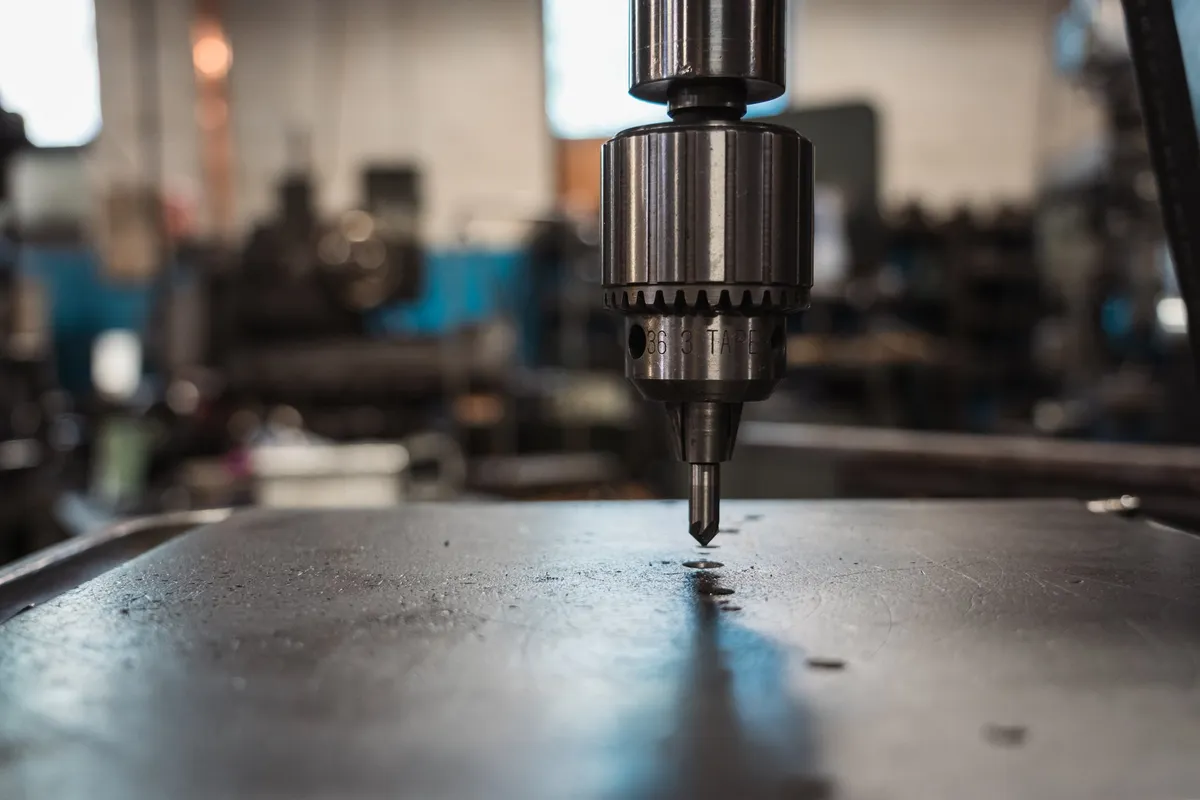

| Secondary | Drilling, tapping and deburring on the bench |
| Masking | Threads masked before powder coat on request |
Typical parts
- Enclosure and chassis panels with captive hardware
- Rack and mounting brackets
- Control panel doors
- Display bases with levellers and studs
- Medical cart frames
Request a quote
Send the print for hardware insertion. Upload a drawing, a flat pattern or a solid model with quantities, material and finish. The quote is priced against machine time on this floor, and we flag anything that will fight the tooling before you commit to a run.
